In modern sanitary facilities, reliable support rails are a key component of comfortable and accessible design concepts. Particularly in toilet facilities or care bathrooms, folding support rails provide safety and guidance in everyday life. The XSR Direkt hinged support rail combines functional stability with a clean, understated design and blends harmoniously into a variety of sanitary architectural styles in commercial settings.

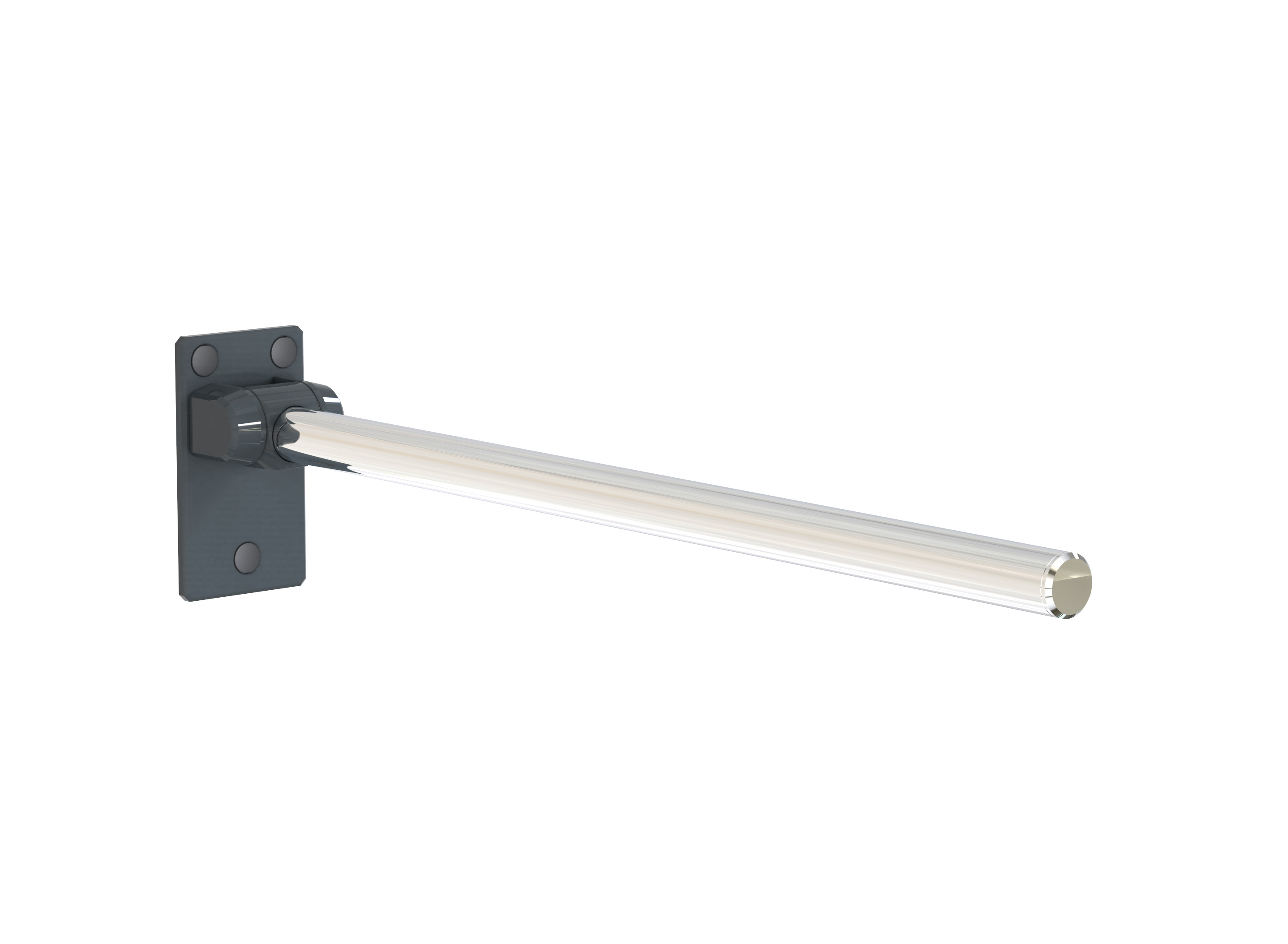

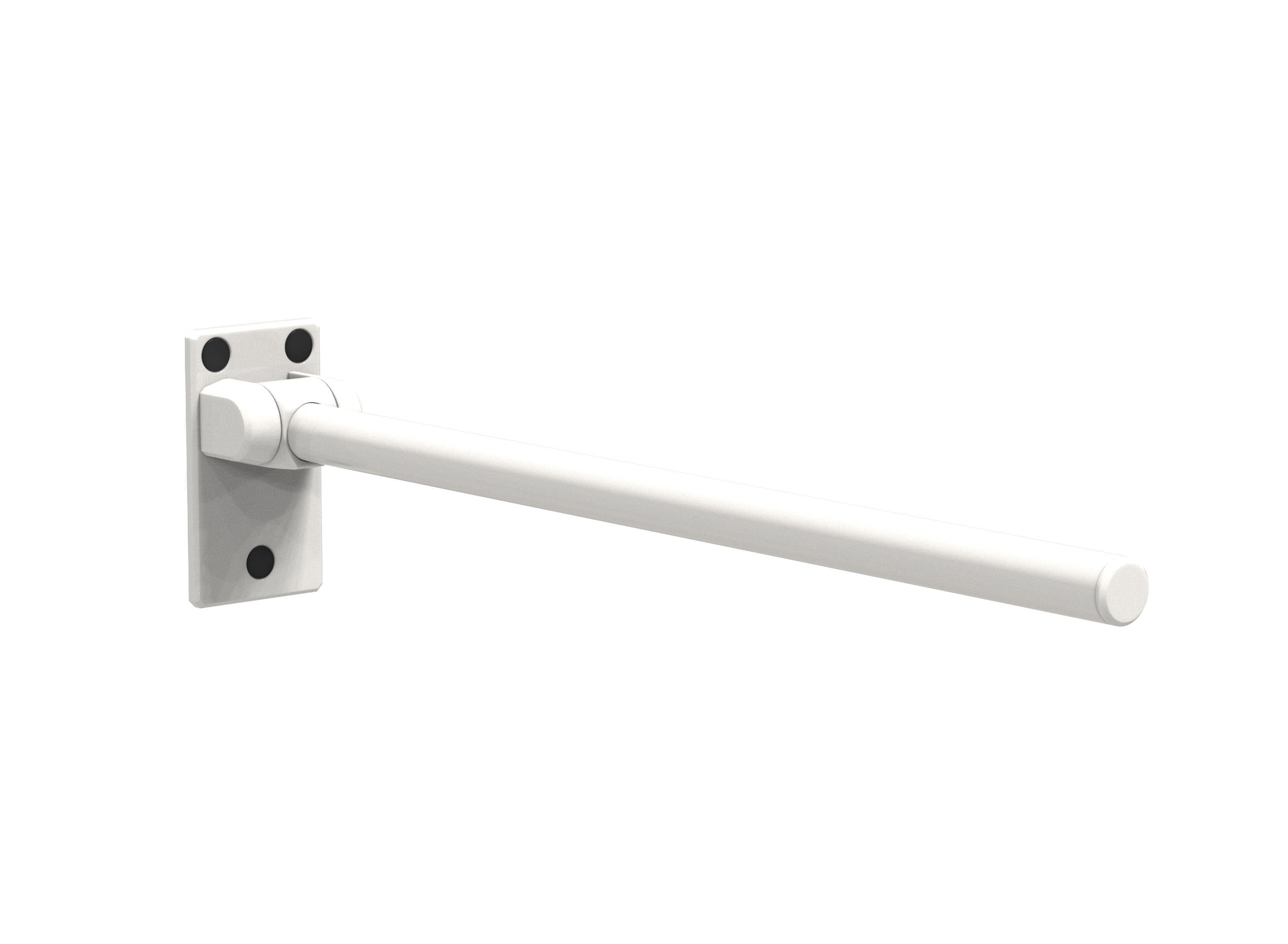

Manufactured from corrosion-resistant aluminium and available either Powder-coated or with a high-gloss anodised finish, the hinged support rail impresses with its durable material quality and high-quality finish. The Ergonomic support bar, made from round tubing, can be flexibly installed on the left or right and folds down on one side. An integrated, adjustable brake ensures controlled movement, whilst a defined stop prevents the handle from hitting the wall when folded away.
For planners and fitters, the hinged support rail offers a practical solution for direct wall-mounted installation without the need for pre-installation. It is fixed in place using three 8 mm diameter countersunk screws (not included). With a load-bearing capacity of up to 125 kg – or 100 kg for lengths of 900 mm or more – the XSR Direkt offers reliable stability in everyday use.
A functional detail that convincingly combines safety, durability and a clean design in the bathroom.
